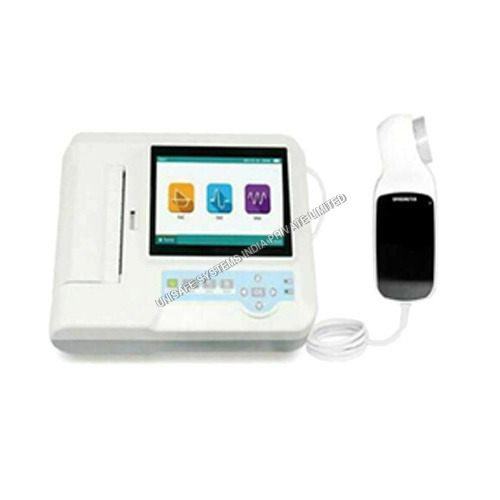

Automatic Digital Spirometer System PC Based

Automatic Digital Spirometer System PC Based

Get a Price/Quote

Product Details:

  • Treatment Type Diagnostic
  • Application Medical Purpose
  • Humidity Range 10% to 95% RH
  • Height 90 mm
  • Color Code White & Grey
  • Suitable For Hospital
  • Dimension (L*W*H) 320 x 260 x 90 mm
  • Click to View more
Request to Call Back Send Inquiry
X

Automatic Digital Spirometer System PC Based Price And Quantity

  • 1 Unit

Automatic Digital Spirometer System PC Based Product Specifications

  • ICU
  • Real-Time Data Display, Accurate Measurement, User Friendly Interface
  • PC Based Graphic Display
  • 10C to 40C
  • Automatic
  • Single Phase
  • 50 Hz
  • 2.5 kg approx.
  • Forced Vital Capacity (FVC), Vital Capacity (VC), MVV, FEV1, PEF, etc.
  • Digital Spirometer System PC Based
  • Rectangular
  • Electric (PC USB powered)
  • 20 W
  • 320 x 260 x 90 mm
  • 1000 Tests (PC Dependent)
  • Digital (via Software on PC)
  • Plastic
  • 3% or better
  • 220 V AC
  • Medical Purpose
  • Diagnostic
  • Hospital
  • 90 mm
  • White & Grey
  • 10% to 95% RH

Automatic Digital Spirometer System PC Based Trade Information

  • Cash in Advance (CID)
  • 10 Unit Per Month
  • 30 Days
  • All India

Product Description

Features
  • High Resolution colour TFT Screen
  • Built in Thermal Array Printer
  • Digital turbine flow meter with high accuracy.
  • FVC, SVC and MVV test
  • Storage for 200 patient data
  • Mains & Battery operations
  • Facility to Transfer data to PC through USB
Technical Specification
  • Power supply : Rechargeable battery & mains power
  • Temperature : 0-50C
  • Flow measurement : Bi-directional digital turbine
  • Volume Measurement : Flow Integration
  • Flow Range : 0.03-20 I/s
  • Volume Range : 0-12 liters (BTPS)
  • Flow Accuracy : +/- 2%
  • Volume Accuracy : +/- 2%
  • Interface : USB
  • Display : 140 x80 mm
  • Printer/Paper : Thermal, 112 mm width
  • Dimensions : 165x150x40 mm
  • Weight : 750 gms
Standard Accessories
  • Digital Turbine  :   01
  • USB Cable  :   01
  • Adult mouthpieces  : 10
  • Adapter for Pediatric mouthpieces  : 01
  • Pediatric mouthpieces  : 10
  • Nose Clips  :  02
  • Operating Manual : 01
  • Carrying Case  : 01



Advanced Respiratory Diagnostics Made Simple

This digital spirometer system delivers precise pulmonary measurements including FVC, SVC, MVV, FEV1, and more. Its intuitive software streamlines patient data handling, exports, and reporting, ensuring easy access for clinicians and healthcare staff. Auto-calibration and real-time alarms increase reliability, while compliance with ATS/ERS standards guarantees trustworthy results every time.


Effortless Integration and User Experience

With USB connectivity and compatibility across modern Windows operating systems, setup is hassle-free. The user-friendly interface enables quick navigation and patient assessment, while disposable and reusable mouthpiece options enhance hygienic use. Efficient data management features help clinics and hospitals integrate seamlessly with existing HMS solutions.

FAQ's of Digital Spirometer System PC Based:


Q: How easy is it to install and set up the Digital Spirometer System?

A: The system features USB connectivity and is compatible with Windows 7, 8, 10, and 11. Installation is straightforward-simply connect the spirometer to your PC via USB, install the provided software, and you are ready to begin assessments.

Q: What measurement parameters can this spirometer assess?

A: It measures Forced Vital Capacity (FVC), Slow Vital Capacity (SVC), Maximum Voluntary Ventilation (MVV), Forced Expiratory Volume (FEV1, FEV1/FVC), Peak Expiratory Flow (PEF), FEF25-75%, and more, providing a comprehensive evaluation of patient lung function.

Q: When should calibration be performed, and is it manual or automatic?

A: Calibration can be performed either automatically or manually as per user preference or regular protocols. Frequent calibration is recommended for optimal accuracy, especially before a series of patient tests.

Q: Where can the collected data be stored and how is it managed?

A: Patient data is stored securely within the PC, with software capable of exporting to PDF, Excel, or hospital management systems. The storage capacity depends on your PC, with the ability to store up to 1000 tests.

Q: What are the maintenance requirements for this spirometer system?

A: This device is low maintenance. Routine cleaning of mouthpieces, periodic calibration, and software updates are generally sufficient. The system includes clear user manuals for reference.

Q: How does the system ensure hygiene between tests?

A: The spirometer supports both disposable and reusable mouthpieces. For maximum hygiene, use a new disposable mouthpiece for each test or sterilize reusable ones according to hospital protocols.

Q: What are the main benefits of using this PC-based spirometer in a hospital setting?

A: Key benefits include high measurement accuracy, easy data management, real-time display, integration with HMS, multilingual support, moderate power consumption, and adherence to international respiratory standards, all of which improve workflow and patient care.
